Amazing power of the Prolights Astra Hybrid330

New Astra Hybrid330, an innovation in the field of technical lighting. This hybrid LED moving head stands out for its astonishing power compared to its compact size, delivering a wide range of stunning visual effects.

The optical system of the Astra Hybrid330 is exceptional, featuring a beam range from 3.5° to 52° and a 140mm front lens that provides intense and uniform focus. This results in a luminosity output of 8,158 lumens at 3.5° and 11,684 lumens at 52°, surpassing the uniformity of arc discharge lights in its category.

At the core of this unit lies a high-power 330W white LED with a Correlated Color Temperature (CCT) of 7,000K. At a distance of 5 meters, it can generate an intensity of 97,996 lux at 3.5° and 1,566 lux at 52°. Moreover, the light source boasts a lifespan of over 30,000 hours.

The color system of the Astra Hybrid330 incorporates three CMY color mixing wheels that fade gradually. It also includes a color temperature wheel with options of 2,400K and 3,200K. Additionally, it features 9 dichroic filters distributed across three independent color wheels, as well as color filters with a high Color Rendering Index (CRI).

Regarding dynamic effects, the Astra Hybrid330 boasts a 16-bit dimmer for precise light intensity adjustments. It incorporates an animation wheel with rotation in both directions. Moreover, it offers 8 rotating gobos and 11 interchangeable and indexable fixed gobos. It also includes an FX effects generator with two overlapping prisms: an 8-facet circular prism and a 6- facet linear prism, both with bidirectional rotation and indexing. Additionally, a linear frost filter from 0 to 100% is included to soften and diffuse the light.

The body of the Astra Hybrid330 is made of aluminum and features a highly resistant polycarbonate cover. It can move on the Pan axis within a range of 540° and on the Tilt axis within a range of 270°, with a resolution of 8/16 bits. In case of accidental movement, it has an automatic repositioning system.

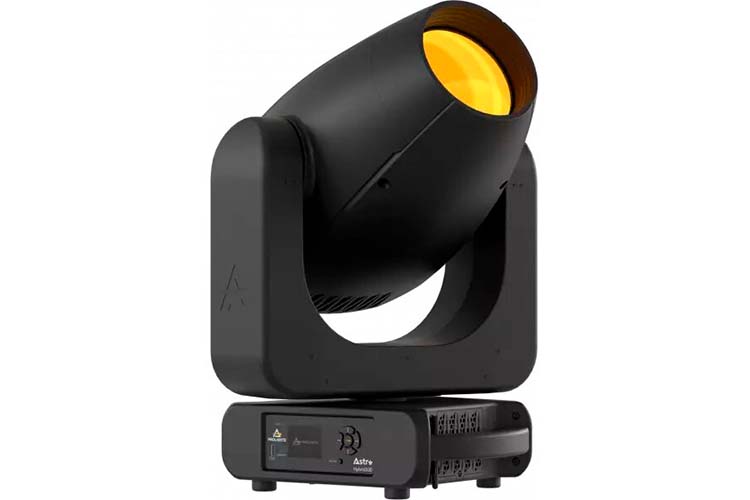

Astra prolights 1 HI   Astra prolights 3 HI



Regarding control, the Astra Hybrid330 is compatible with DMX512, RDM, Art-Net, sACN, and W-DMX protocols, with 29 DMX channels. It also comes with LumenRadio Timo Fx DMX/RDM wireless control, compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX).

The Astra Hybrid330 operates with a power supply of 100-240V – 50/60Hz, with a maximum consumption of 517W. Its power factor is higher than 0.98, indicating high energy efficiency.

It has an IP rating of 20 and features a combined heat pipe and low-noise fan cooling system. Quick-lock omega brackets are included for suspension and fixing. It also has a Pan/Tilt lock for transportation and maintenance.

The Astra Hybrid330 has Amphenol XLR 5p IN/OUT, Neutrik Art-Net RJ45 IN/OUT, and Neutrik powerCON TRUE1 IN/OUT signal connections. Its dimensions are 411x638x244mm, and it weighs 21.6 kg.



The Astra Hybrid330 is a prodigy that combines power, versatility, and durability in a robust and compact device.
